Pioneer Water Tanks manufactures tanks from 3,856 gallons to 703,126 gallons capacity with structural engineering suitable for rural, domestic or commercial use using durable and 100% Zincalume steel.
Any Pioneer Water Tank can be designed to suit earthquake zones, cyclonic regions, heavy industrial or highly specialized environments.
Our tanks feature the innovative and aesthetically pleasing 8-80 V-LOCK profile with protective capped bolt system and fully enclosed vertical bolt cover for optimal strength and structural integrity.
Committed to providing a competitive price and personalized service to match individual needs.
Dedicated staff with practical knowledge and years of experience.
We listen to your specific needs and recommend a suitable custom water storage solution.
Through our qualified engineering personnel and independent consultant engineers, we provide high quality professional design and support services.
Thorough check methods are employed to ensure correct installation from beginning through to commissioning. Our procedures provide for ease of installation, less time on site, minimal infrastructure and construction personnel.
Pacific Blue Catchment is a exclusive Master Distributor of Pioneer Water Tanks for North America.
Pacific Blue Catchment is committed to providing the best quality product and service from first contact to completed tank and after sales service.
Profiled wall design and wide range of colors to seamlessly integrate with the surrounding environment.
Continual research and development and innovative production methods create uniform quality. A culture of continuous improvement forms a key pillar of Pioneer Water Tanks' business success.
| Tank Model | Tank Diameter | R1 (3 ft 9 in) | R2 (7 ft 2 in) | R3 (10 ft 7 in) | R4 (14 ft) | R5 (17 ft 5 in) | R6 (20 ft 10 in) | R7 (24 ft 3 in) | R8 (27 ft 8 in) |
|---|---|---|---|---|---|---|---|---|---|
| XL01 | 8 ft 10 in | 1,714 | 3,249 | 4,813 | 6,363 | 7,913 | ā | ā | ā |
| XL04 | 11 ft | 2,678 | 5,076 | 7,521 | 9,942 | 12,364 | 14,786 | ā | ā |
| XL05 | 13 ft 2 in | 3,856 | 7,309 | 10,830 | 14,317 | 17,804 | 21,291 | 24,778 | ā |
| XL08 | 15 ft 5 in | 5,226 | 9,907 | 14,678 | 19,404 | 24,130 | 28,856 | 33,582 | ā |
| XL10 | 17 ft 7 in | 6,829 | 12,946 | 19,182 | 25,358 | 31,534 | 37,710 | 43,886 | ā |
| XL13 | 19 ft 9 in | 8,647 | 16,392 | 24,287 | 32,107 | 39,927 | 47,747 | 55,567 | 63,387 |
| XL15 | 22 ft | 10,679 | 20,243 | 29,994 | 39,651 | 49,309 | 58,966 | 68,624 | 78,281 |
| XL20 | 24 ft 2 in | 12,925 | 24,501 | 36,302 | 47,991 | 59,680 | 71,368 | 83,057 | 94,746 |
| XL23 | 26 ft 4 in | 15,347 | 29,093 | 43,105 | 56,984 | 70,863 | 84,742 | 98,621 | 112,500 |
| XL25 | 28 ft 7 in | 18,018 | 34,156 | 50,608 | 66,903 | 83,198 | 99,492 | 115,787 | 132,082 |
| XL30 | 30 ft 9 in | 20,904 | 39,626 | 58,713 | 77,617 | 96,521 | 115,426 | 134,330 | 153,234 |
| XL35 | 32 ft 11 in | 24,004 | 45,502 | 67,419 | 89,126 | 110,834 | 132,542 | 154,249 | 175,957 |
| XL40 | 35 ft 2 in | 27,318 | 51,785 | 76,727 | 101,431 | 126,136 | 150,841 | 175,545 | 200,250 |
| XL45 | 37 ft 4 in | 30,792 | 58,370 | 86,484 | 114,330 | 142,177 | 170,023 | 197,869 | 225,715 |
| XL50 | 39 ft 6 in | 34,588 | 65,567 | 97,148 | 128,427 | 159,707 | 190,987 | 222,267 | 253,546 |
| XL60 | 41 ft 8 in | 38,545 | 73,068 | 108,261 | 143,118 | 177,976 | 212,834 | 247,692 | 282,550 |
| XL65 | 43 ft 10 in | 42,652 | 80,853 | 119,796 | 158,368 | 196,940 | 235,512 | 274,084 | 312,656 |
| XL70 | 46 ft | 46,900 | 88,906 | 131,727 | 174,141 | 216,555 | 258,968 | 301,382 | 343,796 |
| XL80 | 48 ft 3 in | 51,630 | 97,872 | 145,012 | 191,703 | 238,395 | 285,086 | 331,777 | 378,468 |
| XL85 | 50 ft 5 in | 56,367 | 106,852 | 158,317 | 209,292 | 260,267 | 311,242 | 362,217 | 413,192 |
| XL90 | 52 ft 8 in | 61,465 | 116,515 | 172,635 | 228,221 | 283,806 | 339,391 | 394,977 | 450,562 |
| XL100 | 54 ft 10 in | 66,703 | 126,446 | 187,349 | 247,672 | 307,995 | 368,318 | 428,641 | 488,964 |
| XL110 | 57 ft | 72,073 | 136,626 | 202,432 | 267,611 | 332,790 | 397,970 | 463,149 | 528,328 |
| XL120 | 59 ft 2 in | 77,737 | 147,363 | 218,340 | 288,642 | 358,943 | 429,245 | 499,546 | 569,848 |
| XL130 | 61 ft 5 in | 83,615 | 158,506 | 234,850 | 310,468 | 386,085 | 461,702 | 537,320 | 612,937 |
| XL140 | 63 ft 7 in | 89,708 | 170,055 | 251,962 | 333,089 | 414,216 | 495,343 | 576,470 | 657,597 |
| XL150 | 65 ft 9 in | 95,919 | 181,829 | 269,406 | 356,150 | 442,894 | 529,638 | 616,382 | 703,126 |
Allowance must be made for air gap and pipe work positioning to establish usable tank volume.
* Availability subject to site conditions.

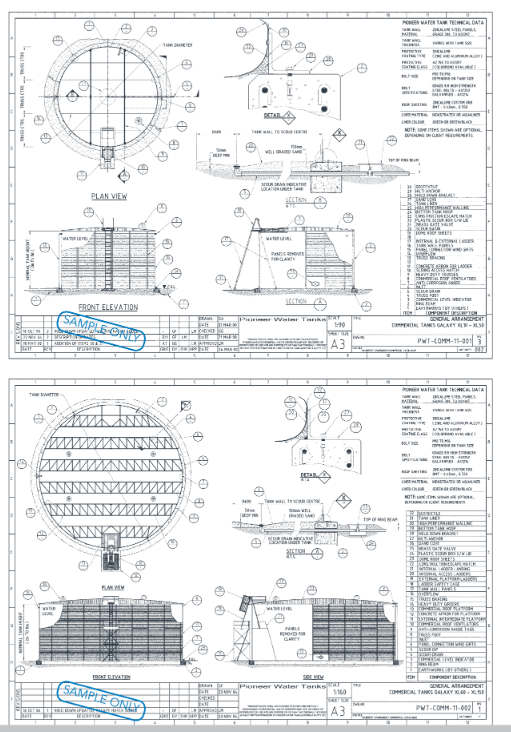

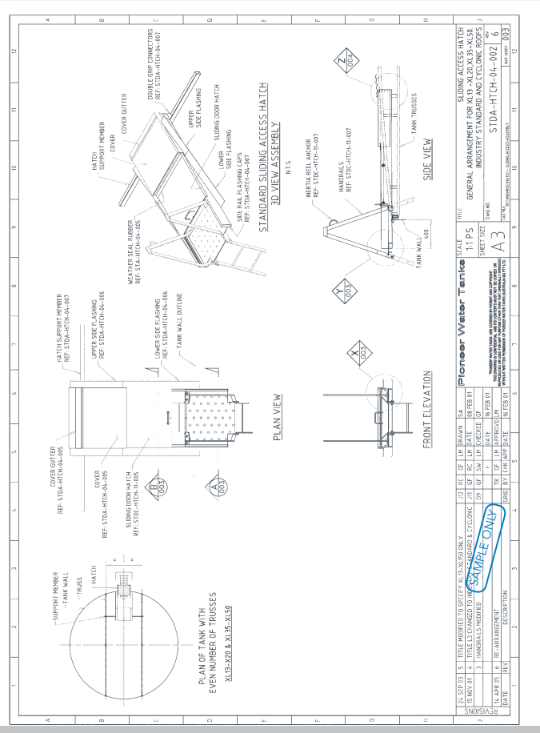

Detailed engineering drawings available for all tank models showing structural specifications and installation requirements.

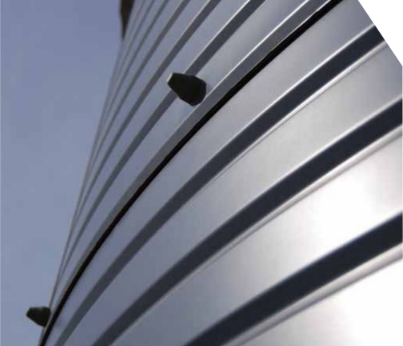

Pioneer Water Tanks' unique 8-80 V-LOCK is the result of rigorous research and development.
The 8-80 V-LOCK profile is designed to minimize stress on the liner during tank level cycling.
Specifically engineered with a flat section at the bolted panel connections, the 8-80 V-LOCK vastly improves the structural integrity and overall aesthetic appeal of your finished tank.
Pioneer Water Tanks understands the importance of the longevity of your tank liner.

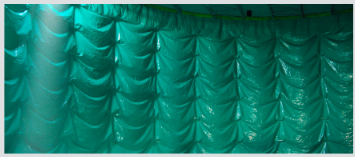

All Pioneer Water Tanks liners are uniquely secured to the tank wall at multiple points to provide optimal support for the liner. This support prevents the liner from pulling away from the tank wall and secures it in position.
The result: less stress on the liner and prolonged service life of your tank.
ā
Multiple Securing Points
Enhanced structural support and extended liner life
AqualinerĀ® and IndustratexĀ® have been exclusively developed and manufactured for Pioneer Water Tanks to provide a water tight liquid storage membrane.
Strength, flex resistance, abrasion resistance, chemical resistance, water proofing and leak proofing have been considered in the design of AqualinerĀ® and IndustratexĀ®. Both liners can be custom manufactured for the relining of existing concrete, steel and other types of water tanks.
Primarily intended for potable water storage, your tank liner can be adapted for a variety of non-potable water grades including grey treated, bore, ground or well water.
This data sheet sets out the criteria for evaluating the suitability of the AqualinerĀ® as a core component of the liner tank system.

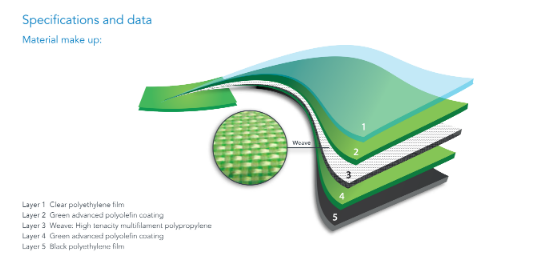

Layer 1: Clear polyethylene film
Layer 2: Green advanced polyolefin coating
Layer 3: Weave: High tenacity multifilament polypropylene
Layer 4: Green advanced polyolefin coating
Layer 5: Black polyethylene film
| Tensile strength (AS2001.2.3) | Warp: 1901 N | Weft: 1353 N |
| Elongation at break (AS2001.2.3, AS4878.6) | Warp: 24.8% | Weft: 18.8% |
| Wing tear (AS2001.2.10, AS4878.7) | Warp: 255 N | Weft: 135 N |
| Coating adhesion (AS4878.2) | 75-85 N |
| Flex cracking (AS4878.9) | 97,000 cycles |
| Max/min temperature | -22Ā° F to +158Ā° F |
| UV stabilisation | Both faces have UV resistance and therefore may be exposed to the sun. However excessive exposure and temperature may dry and shrink the material. It is Pioneer's recommendation that the AqualinerĀ® be covered. |
| Material thickness | 0.60mm |
| Unit mass/weight (AS4878.2) | 405 grams per square metre |
| Seam weld | 25mm weld with 25mm seal tape welded to both sides covering edges of fabric |
| Flume test | Water beads: 20 metres of water head pressure | Burst: 20 metres of water head pressure |
| Chemical resistance | AqualinerĀ® is resistant to various chemicals. To be certain, we recommend a chemical analysis report be completed to confirm suitability. pH: 5 - 10 | Chlorine: 3-5ppm Note: Intense levels of chlorine such as shock treatment and tablets can have an adverse affect on the AqualinerĀ®. It is therefore recommended controlled dosing systems be used. |
| Special comments | AqualinerĀ® can store a wide variety of non-aggressive and aggressive waters however you should also be considerate that the steel structure may not be so readily accepting. |
This data sheet sets out the criteria for evaluating the suitability of IndustratexĀ® as a core function of the liner tank system.

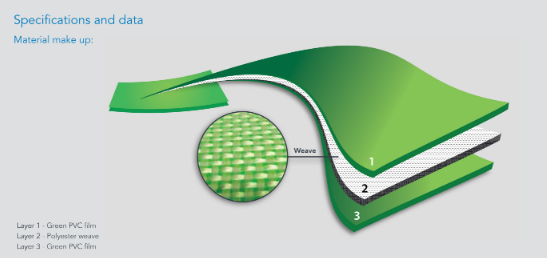

Layer 1: Green PVC film
Layer 2: Polyester weave
Layer 3: Green PVC film
| Tensile strength (AS2001.2.3) | Warp: 2600 N | Weft: 2400 N |
| Tongue tear (BS3424.5) | Warp: 550 N | Weft: 450 N |
| Coating adhesion (AS1441.1973) | 90 N (min) |
| Flex cracking (AS 1441.6) | 400,000 cycles |
| Max/min temperature | -4Ā° F to +122Ā° F |
| Stabilisation | Material is UV stabilised therefore may be exposed to the sun. Excessive exposure and temperatures may dry and shrink the material. It is Pioneer's recommendation that all IndustratexĀ® liners be covered. |
| Material thickness | 0.06cm |
| Unit mass/weight | 610 grams/mĀ² |
| Seam weld | 2.5cm weld |
| Flume (water proof) test | Water beads: 65.62 feet of water head pressure | Burst: 82.02 feet of water head pressure |
| Chemical resistance | IndustratexĀ® is resistant to various chemicals, but to be certain if suitable for your application we recommend a chemical analysis report be forwarded to confirm. pH: 5-10 | Chlorine: Maximum 50ppm Note: Intense levels of chlorine such as shock treatment and tablets can have an adverse affect on the IndustratexĀ®. It is therefore recommended that controlled dosing systems be used. |
| Recommended applications | All water storage: potable, ground, bore well water, river, spring water and seawater. |
| Special comments | IndustratexĀ® can store a wide variety of non aggressive and aggressive waters however you should also be considerate that the steel structure may not be so readily accepting. |

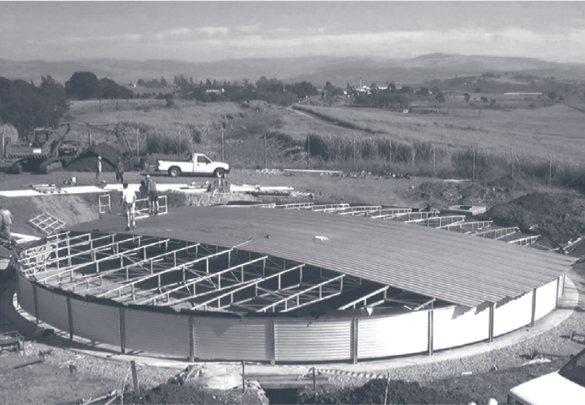

Pioneer Water Tanks has invested extensive effort developing a roof structure that is not only easy to install but stronger and easily adaptable for most applications.
The innovative truss foot connection allows a flush strong bolted connection with the tank wall, resulting in direct load transfer from roof structure to tank wall and then to the ground.
All roof structures utilize the strength of square hollow sections (SHS), fully welded and post galvanized to build a strong, robust structure that will perform in all conditions.

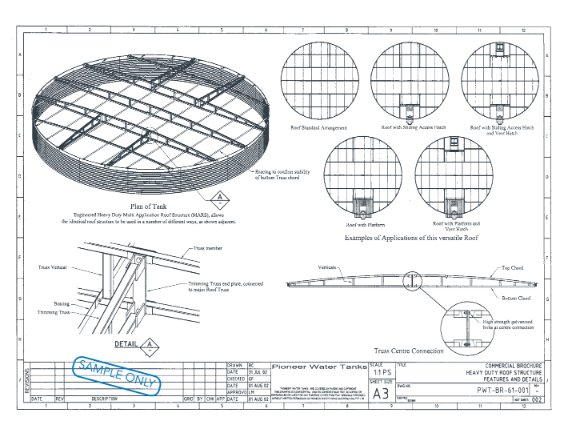

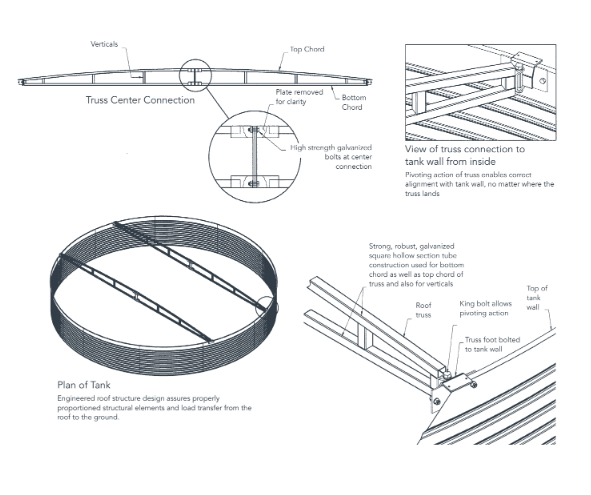

This is a robust engineered roof structure comprising SHS tube members fabricated into welded roof trusses with swivel truss feet to enable secure alignment with the tank wall.
The SHS trusses are high strength/high ductility and are engineered to provide direct load paths for all loads that are incident to the roof into the tank wall. The structure is typically galvanized to ensure excellent performance and long life. The roof structure is capable of handling construction and maintenance loads as required by AS1170.1.
As with most light building-type structures, personnel need to restrict their footprints to the lines of the trusses. This roof is suitable for most applications where standard access hatches are required, and when not located in an exposed area subject to gales. These roofs are designed in accordance with the relevant clauses of AS1170.0, AS1170.1 and AS1170.2, and can withstand regional wind speeds of up to 141.08 feet per second, as specified in AS1170.2.
The heavy duty roof is designed in accordance with the relevant clauses of AS1170.0, AS1170.1 and AS1170.2 to withstand minimum regional winds of up to 43 metres per second.
Embodying the features of the industry standard roof design, the heavy duty tank roof is capable of handling heavier loads arising from larger platforms such as the two metre by two metre roof platform and handrails.
The heavy duty roof has been structurally designed to enable mounting of ancillary features such as a vent hatch on one side of the roof diametrically opposite the access hatch.

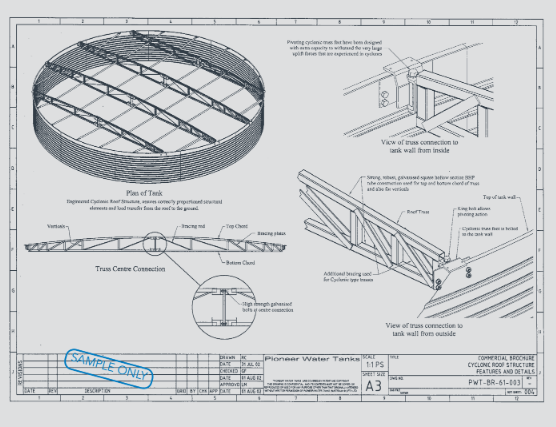

Two cyclonic roof designs are available for Cyclonic Regions C and D in accordance with the relevant clauses of AS1170.0, AS1170.1 and AS1170.2.
Regional wind speeds in accordance with AS1170.2 for Region C and Region D cyclonic roofs are 65 metres per second and 82 metres per second respectively.
The cyclonic roofs embodies the features of the heavy duty roof design with roof trusses of greater depth and closer spacing to withstand the higher wind velocities expected in Cyclonic Regions C and D.

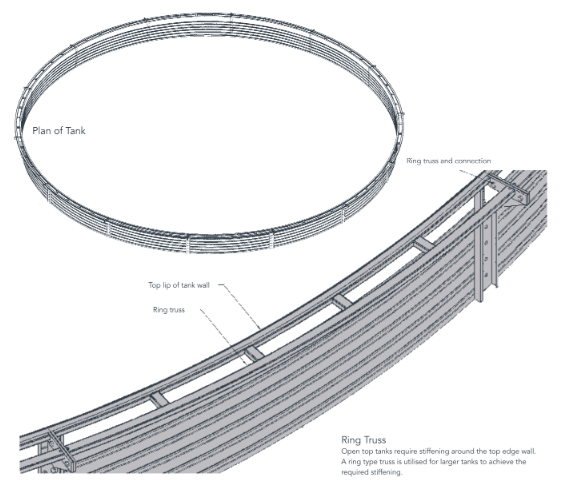

Pioneer Water Tanks have developed a system for tanks without the need for a roof structure.

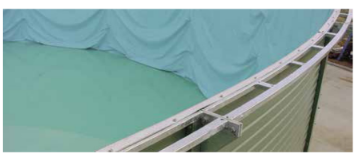

The open top tank ring truss gives superior strength and stiffness to the top edge of the tank body.
This simple, but very effective solution works very well for tanks in the effluent treatment industry whereby special ring trusses must be designed to accommodate loads imposed from equipment such as floating aerators.
Open top tanks require stiffening around the top edge wall. A ring type truss is utilised for larger tanks to achieve the required stiffening.

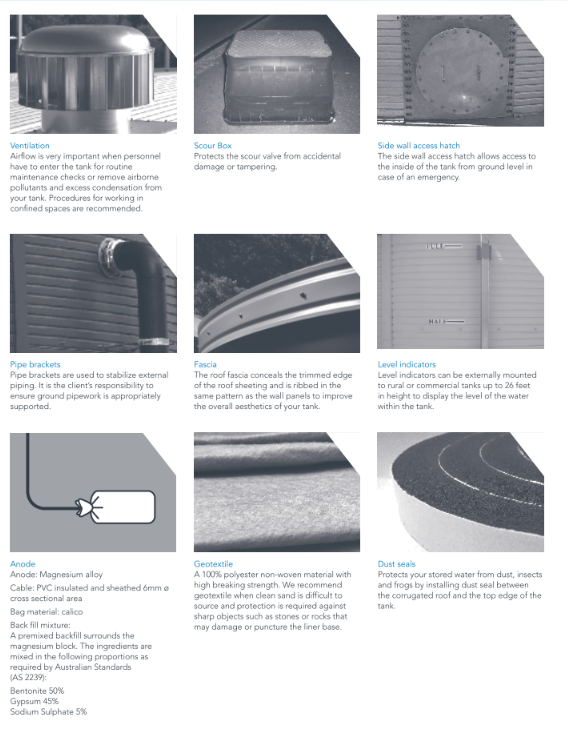

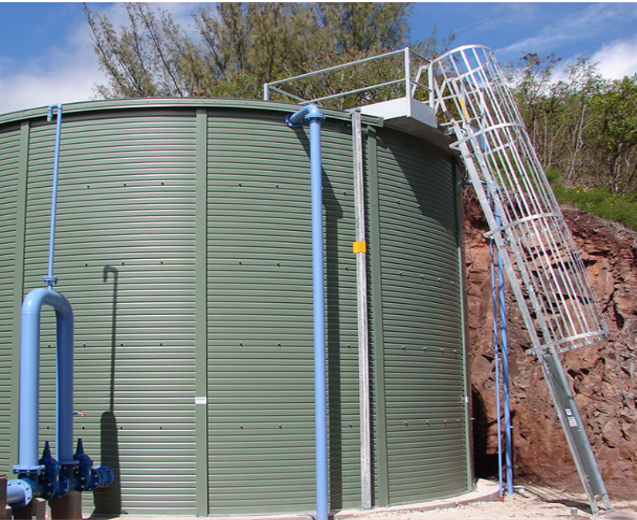

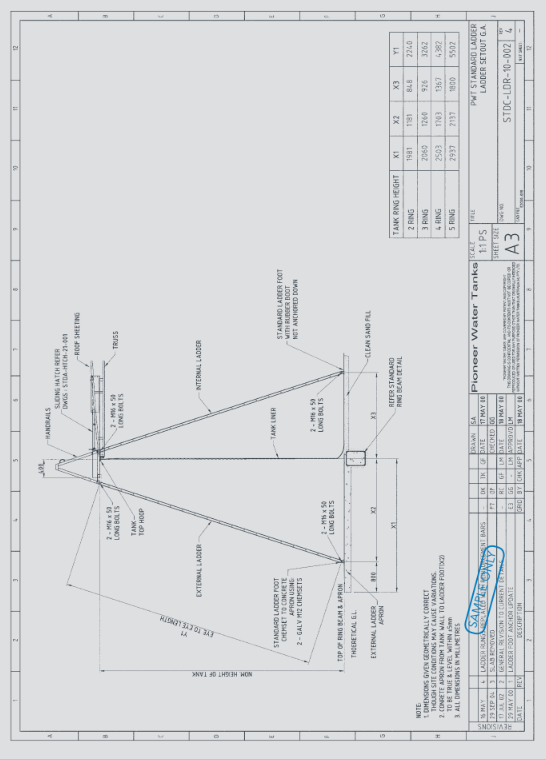

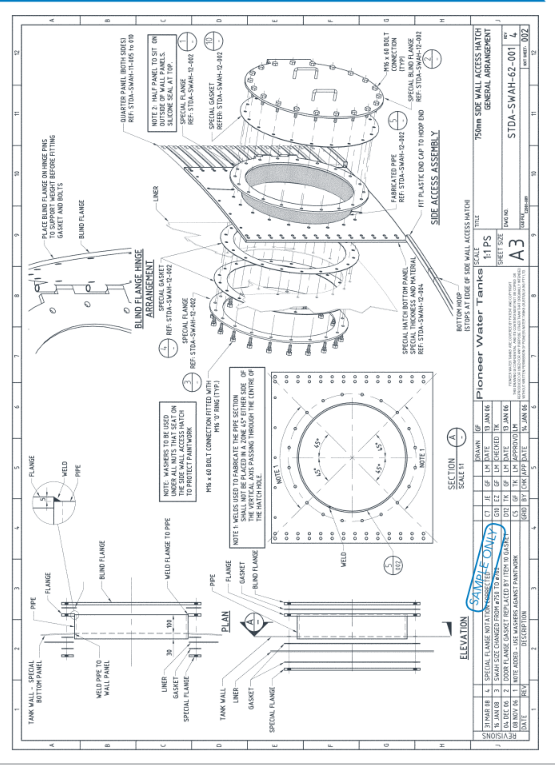

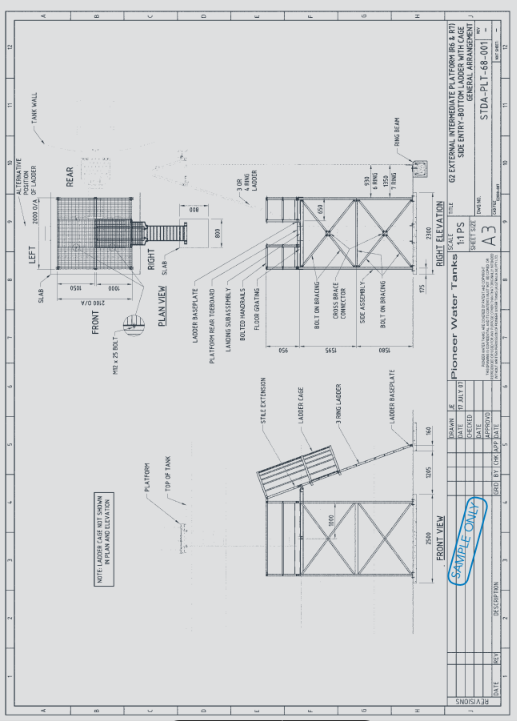

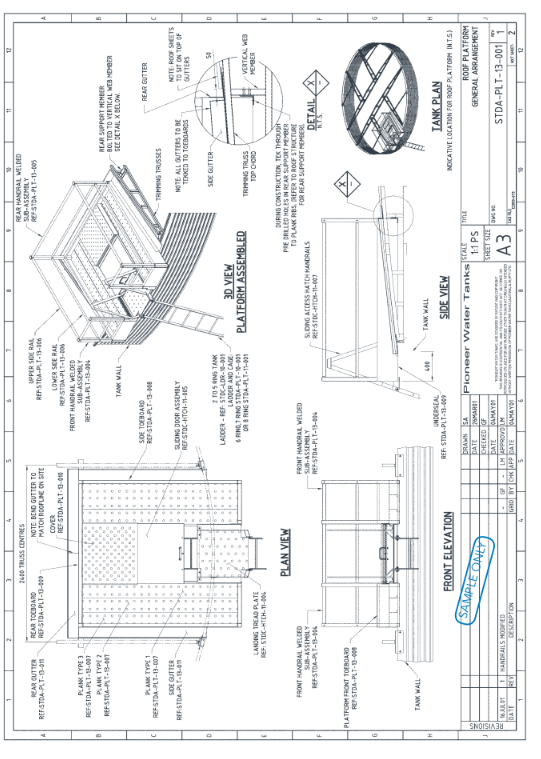

Safe and secure access solutions for maintenance and inspection.
Precision-engineered connections for all plumbing requirements.
Accurate water level monitoring systems.
High-quality flow control and management systems.

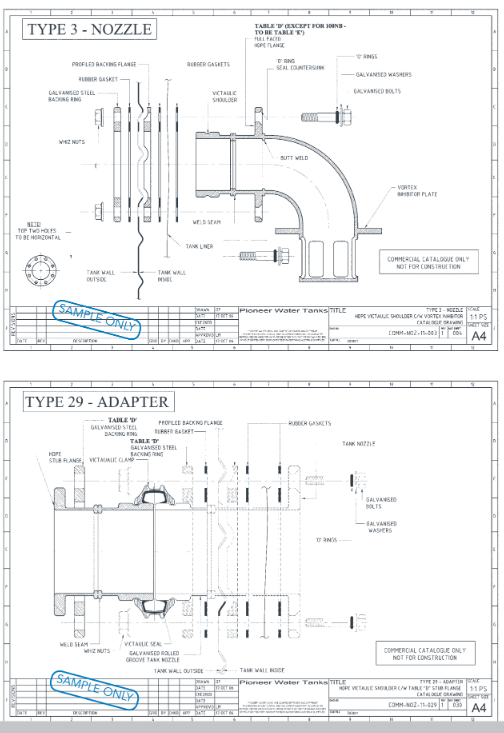

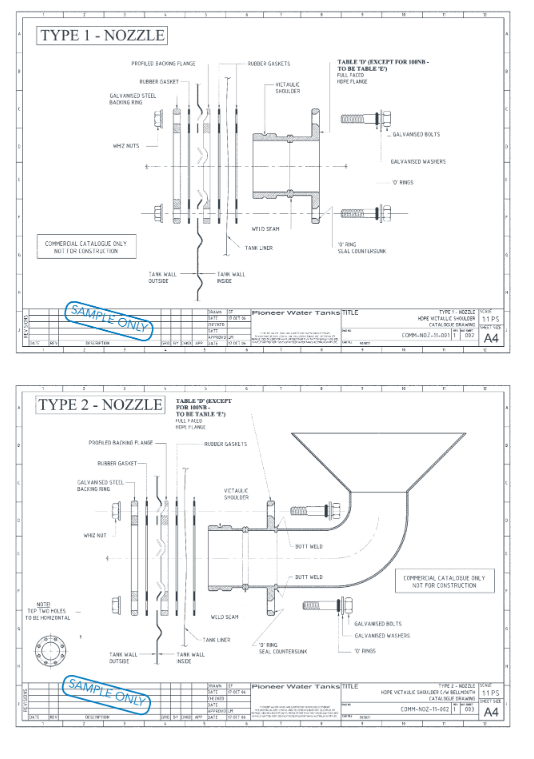

Pioneer Water Tanks has the flexibility to insert nozzles through the tank wall, roof or floor to suit most flange tables (BSP, D, E, DN, DIN or ANSI) with polyethylene or galvanized steel fitting also available.
Pioneer Water Tanks stocks a selection of valves including ball valves, butterfly valves, float control valves, diaphragm valves, check valves and electronic level sensors.
The position and size of tank nozzles will determine the effective (or usable) storage capacity of your tank. Clients must nominate the position of each nozzle, inlet, outlet, overflow and the line to match existing or new pipe work prior to manufacture commencing.

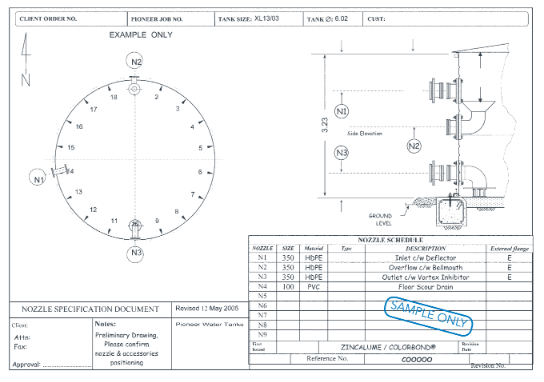

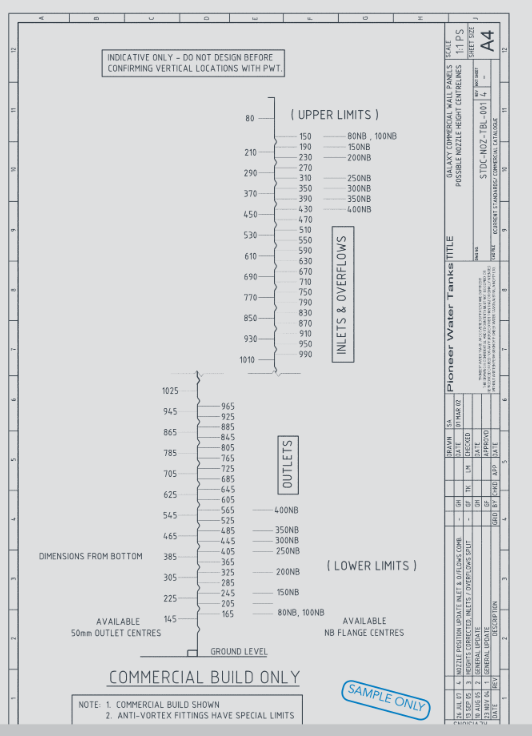

All nozzle drawings are indicative only. Do not design before confirming vertical locations with Pioneer Water Tanks.

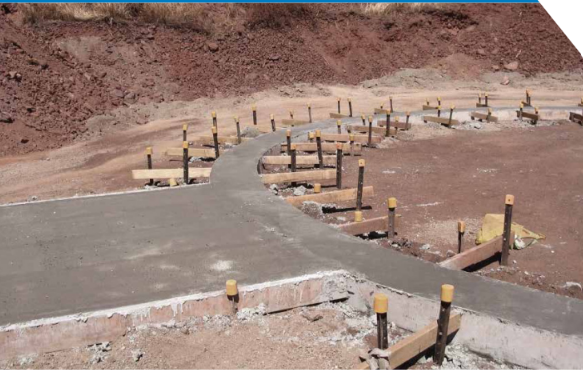

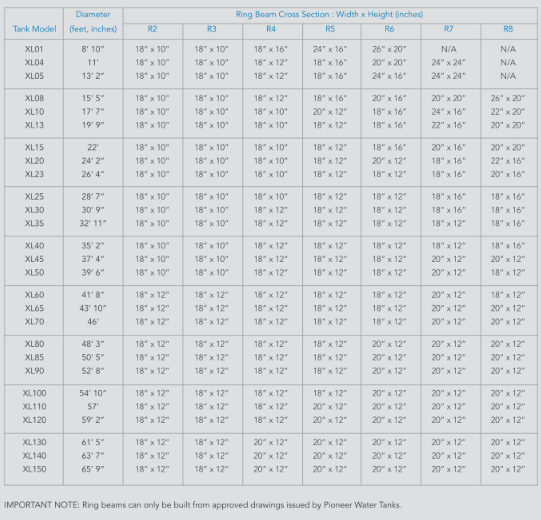

Proper site preparation and footing design are critical for the longevity and performance of your water catchment tank.

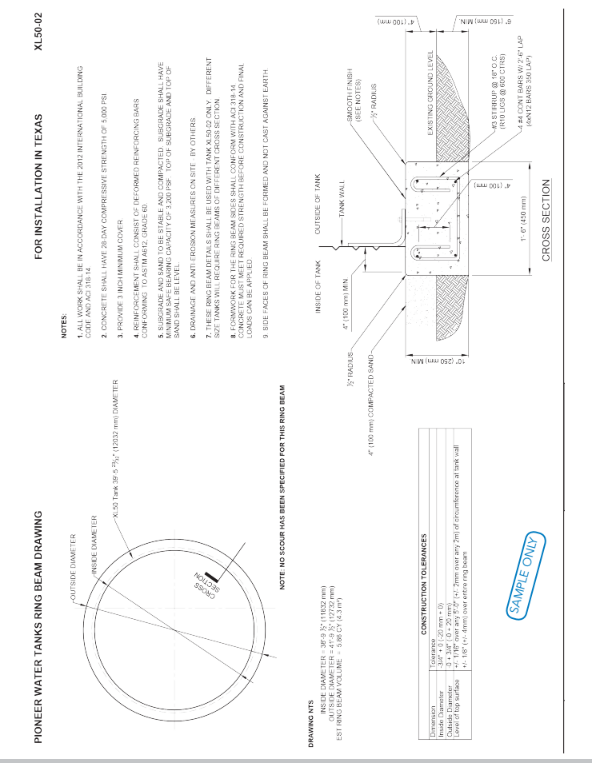

Pioneer Water Tanks can provide detailed foundation specifications and engineering drawings specific to your site conditions and tank model. Contact us for professional site assessment and foundation design services.
Bluescope ZINCALUMEĀ® steel, COLORBONDĀ® steel or COLORBONDĀ® Ultra steel panels complying with AS1397. Most severe earthquake loads to AS1170.4. 8-80 V-LOCK wall profile to AS4600.
G300 ZINCALUMEĀ® steel.
ZINCALUMEĀ® steel (zinc/aluminium/magnesium alloy) AM125 heavy-duty coating. Also available in COLORBONDĀ® steel.
M10-M16 galvanized, flanged head, high tensile bolts.
Nozzles are manufactured from either PE100 SDR17 HDPE or hot dipped galvanized steel (available on request).
This can be either client or tank specific or both. Each project will be confirmed in writing and comprise a full installation, manufacturing and installation schedule. Note that Pioneer Water Tanks requires certain information prior to commencing manufacturing. This will be advised to you at the time of proposal.
Contact us to discuss custom color matching to seamlessly integrate your tank with your facility's existing color scheme and branding.
